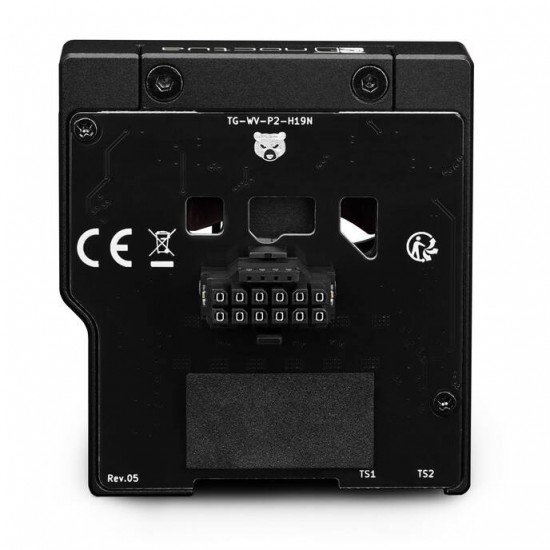

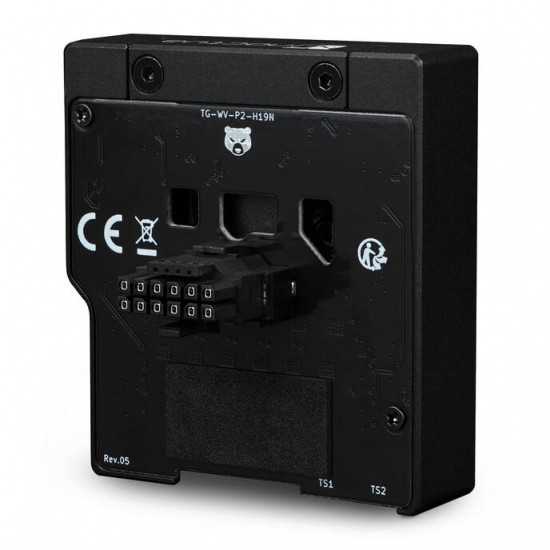

Thermal Grizzly WireView Pro II GPU Noctua Edition - 12V-2x6 - TFT-IPS – Black - Standard

The Thermal Grizzly WireView Pro II GPU monitors the power supply of high-performance graphics cards with a 12V-2x6 connector. The second Pro generation measures current, voltage and power for individual pins, helping you to identify problematic load distributions early on. An integrated display shows the most important operating data directly within the PC.

• Per-pin measurement: Detects unevenly distributed loads early
• TFT IPS: Displays current, voltage, power and temperatures
• Alarms: Provides visual and acoustic warnings at limit values
• 90-degree: Routes the 12V-2x6 cable space-savingly
• Data logging: Stores measurement values for fault analysis

Per-pin monitoring for GPU power supply

The WireView Pro II records current not only as a total value but separately for the individual lines of the 12V-2x6 connector. This makes it easier to detect unusual loads on individual contacts. In addition, the device monitors voltage, power consumption and several temperature values. Thermal Grizzly specifies the measurement tolerance as ±4 percent.

Display and warning functions directly in the PC

The 320 x 170 pixel TFT IPS colour display offers various views of the monitored values. In addition to total power and voltage, you can also display the most heavily loaded pin and the highest measured temperature. When limit values are exceeded, the device warns both visually and acoustically. Optionally, an automatic system shutdown can be set up via the supplied splitter cable.

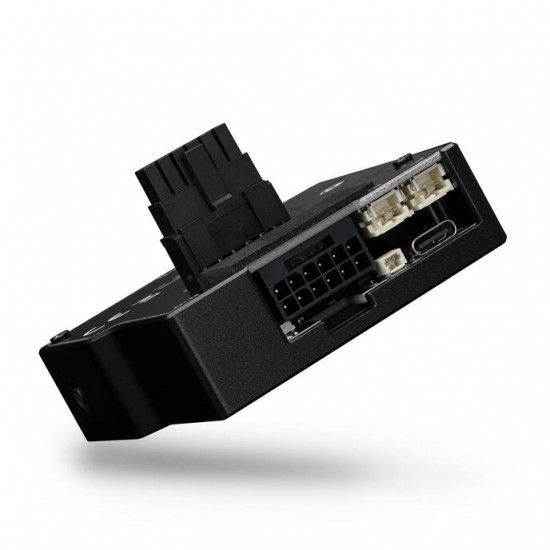

90-degree connector and automatic data recording

The standard version routes the 12V-2x6 power cable at a 90-degree angle, which can help with cable management inside the case. An internal memory automatically records relevant operating data, supporting later fault analysis. Firmware updates can be performed via USB-C, and the internal USB 2.0 connection allows integration into the PC. Compatibility with graphics card, case and CPU cooler should be checked against the manufacturer’s list before installation.
