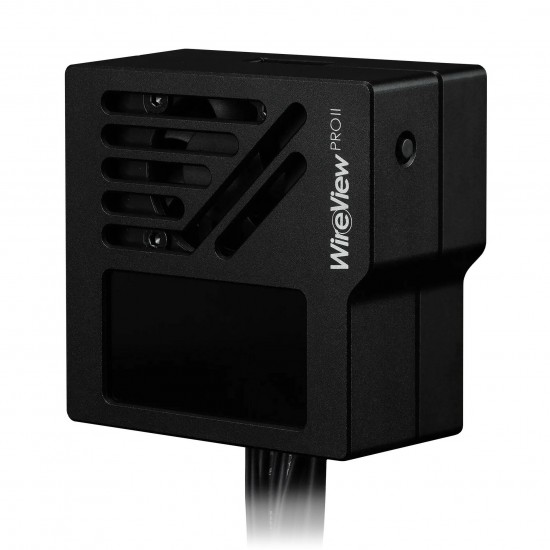

Thermal Grizzly WireView Pro II Wired GPU Power Monitor

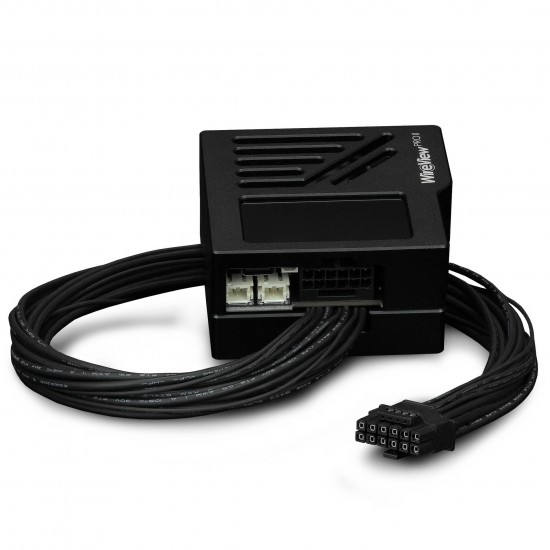

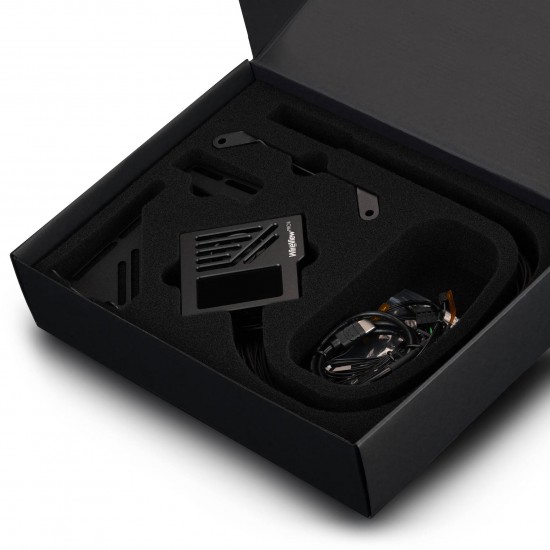

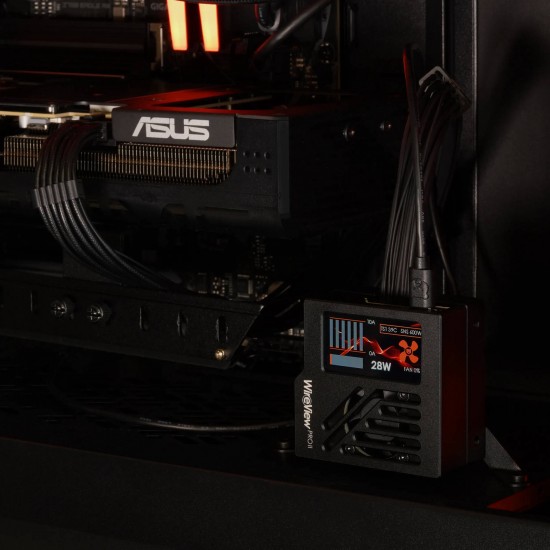

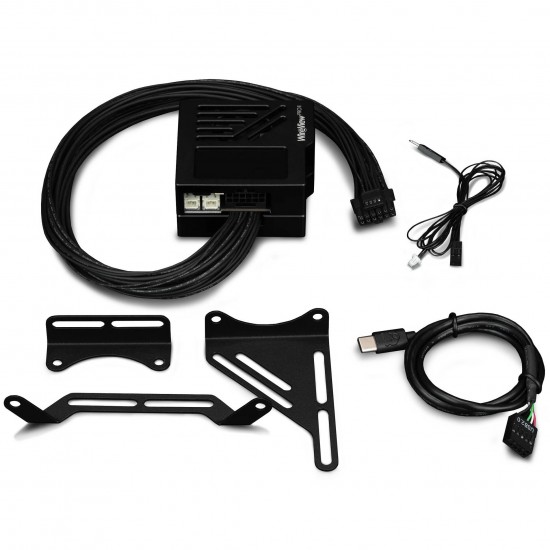

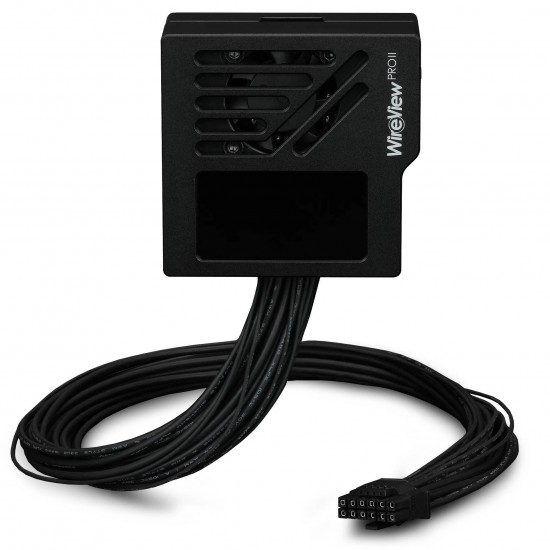

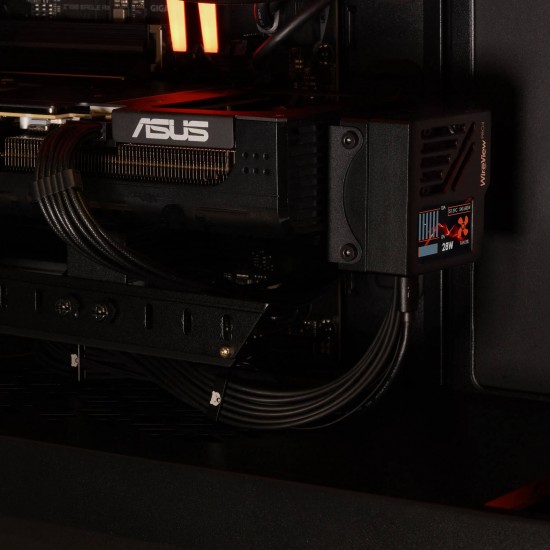

The WireView Pro II has been specifically designed for the demanding use of modern high-end graphics cards with 12V-2x6 connectors and represents the advanced version of the WireView Pro. As a patented development by Thermal Grizzly, it is protected by the European patent EP4250057. The "Wired" variant of the WireView Pro II is not plugged directly into the graphics card but can be freely positioned inside the case thanks to a 40 cm long power cable with a 12V-2x6 connector. Several included mounting brackets offer extensive options for attachment.

The WireView Pro II measures the current not only as a total value but per conductor of the 12V-2x6 connector. This allows potential contact issues between the cable and graphics card to be identified immediately. The WireView Pro II was specifically developed to enable precise monitoring of the 12V-2x6 connector, allowing early detection of load distribution problems and helping to prevent possible damage to the graphics card and the 12V-2x6 connector.

All safety-relevant parameters such as currents (A), voltages (V), temperatures (°C), and power consumption (W) are continuously measured. Thermal Grizzly defines limit values that should not be exceeded during normal operation, as otherwise there is an increased risk of thermal damage to the connector. If these limits are exceeded, a visual warning appears on the display along with an audible alarm. Optionally, automatic system shutdown is possible via the supplied splitter cable. The preset limit values can be changed via the configuration menu.
