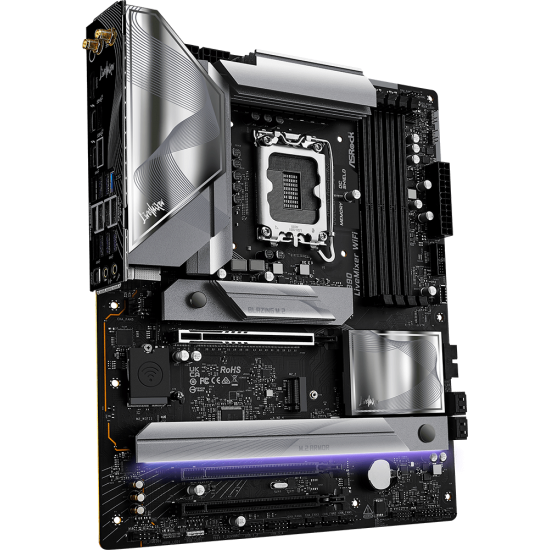

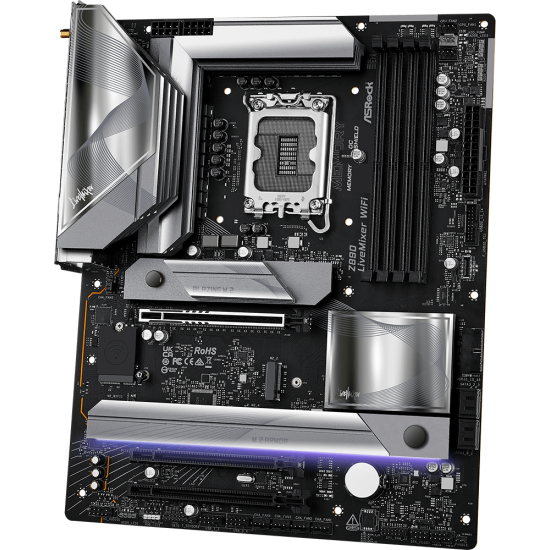

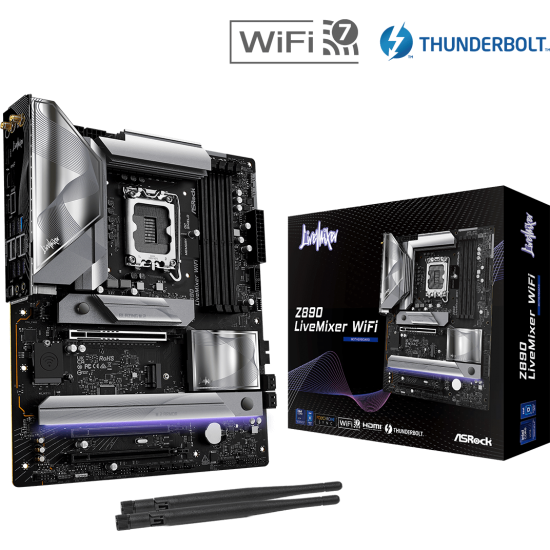

ASRock Z890 LiveMixer WiFi, Intel Z890 Mainboard, Socket LGA 1851, Intel Z890, ATX, DDR5 Anakart

ATX-Mainboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x16, 2x USB4 / 2x USB 3.1 / 10x USB 3.0, 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, 8x 4-Pin PWM connectors

• Form factor:
  ATX (305 x 244 mm)
• Chipset:
  Intel Z890
• Socket:
  LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation)
• RAM:
  4x DDR5 DIMM (up to 9,066 MHz via XMP)
  Dual-Channel
  Max. 256 GB
• Slots (physical):
  1x PCIe 5.0 x16 (electrical x16 or x8/x8)
  2x PCIe 4.0 x16 (electrical x4)
• Total usable PCIe lanes: 44
• Internal connectors:
  4x SATA 6G (max.)
  1x M.2 (PCIe 5.0 x4, 2280, CPU)
  1x M.2 (PCIe 4.0 x4, 2280, CPU)
  1x M.2 (PCIe 4.0 x4, chipset)
  1x M.2 (PCIe 4.0 x4, chipset)
  1x USB-C (1 header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
  2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
  2x USB 2.0 (1 header, max. 480 Mbit/s)
  1x Front Panel Audio header
  1x Front System Panel header
  1x Thermal Sensor header
• Fan headers:
  1x 4-pin CPU Fan header
  1x 4-pin CPU OPT Fan header
  1x 4-pin AIO Pump header
  5x case fans (4-pin)

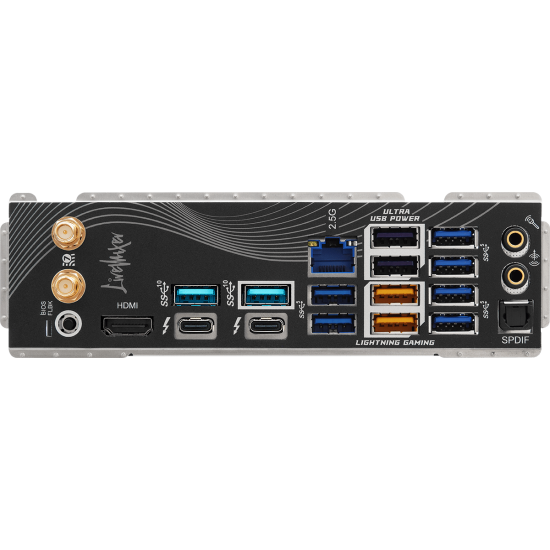

• External connectors:
  2x Thunderbolt 4 (USB-C 40 Gbit/s)
  2x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbit/s)
  10x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbit/s)
  1x HDMI
  1x 2.5 Gigabit LAN
  1x WiFi/Bluetooth module
  2x 3.5 mm jacks (Realtek ALC 4080)
  1x S/PDIF Audio
• Power supply:
  1x 24-pin ATX
  2x 8-pin ATX12V
  1x 6-pin PCIe ATX
