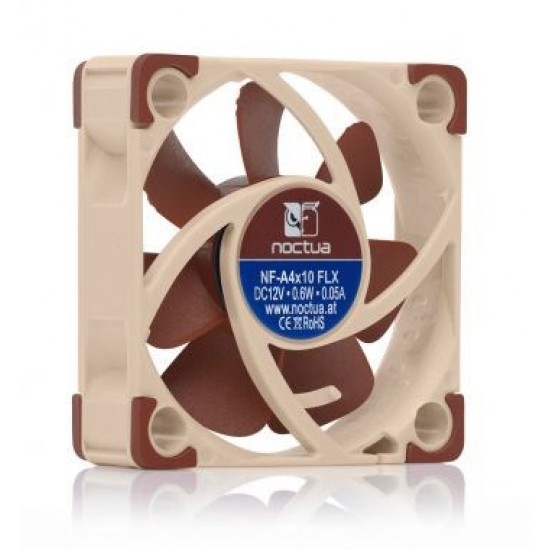

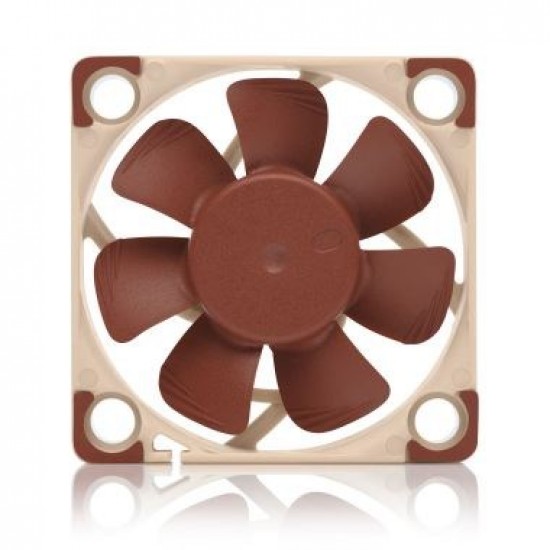

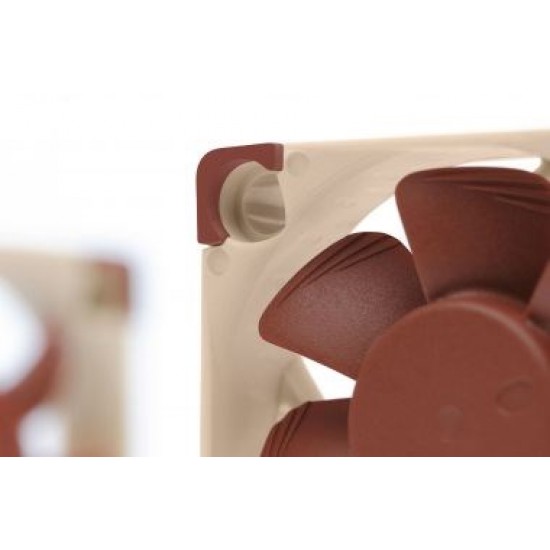

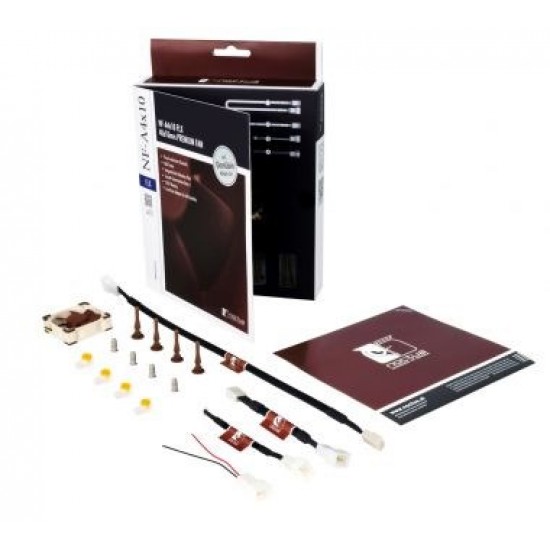

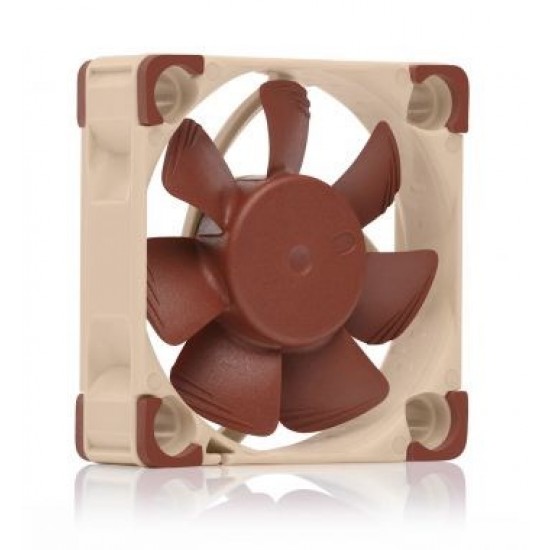

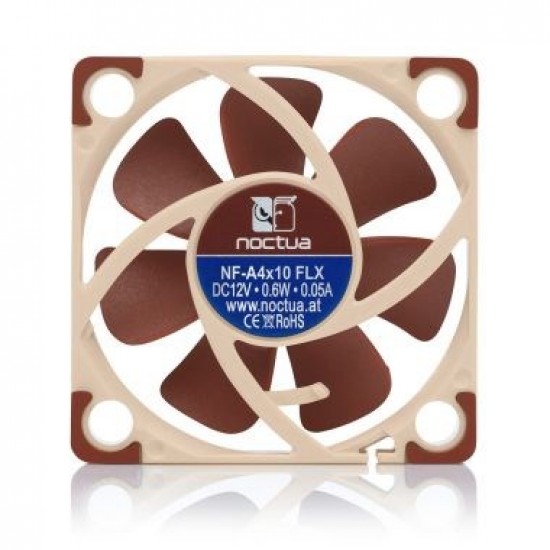

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x10 FLX is a highly optimised, premium quality quiet fan in 40x10mm size. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and OmniJoin™ adaptor set as well a 6-year manufacturer’s warranty, the NF-A4x10 is a premium choice for the highest demands.
Dimensions | |
Length / Depth | 40 mm |
Width | 40 mm |
Fan height | 10 mm |
Fan Specifications | |
Fan Size | 40 mm |
Fan mounting size | 40 mm |
Fan Blade Direction | Standard |
Fan Bearing | Self-Stabilizing Oil Pressure Bearing |
Min. Fan RPM | 3700 rpm |
Max. Fan RPM | 4500 rpm |
Min. Single Fan Airflow | 6.6 m³/h |
Max. Single Fan Airflow | 8.2 m³/h |
Min. Static Pressure | 1.21 mmH2O |
Max. Static Pressure | 1.78 mmH2O |
Power Specifications | |
Rated voltage | 12 V |
Noise | |
Min. Single Fan Noise | 12.9 dB(A) |
Max. Single Fan Noise | 17.9 dB(A) |
Internal Ports | |
Fan connectors | 2 Pin, 3 Pin |
İncelediğiniz ürünün Türkiye distribütörü veya ithalatçı firması tarafından garanti süresi 2 yıldır. Garanti kapsamı sürecinde ürün arıza durumu tarafımızca takip edildiği gibi isteğe bağlı olarak faturanız ile birlikte yetkili servis noktası ile doğrudan iletişime geçebilirsiniz.
- Kategori: Kasa Fanları
- Marka: Noctua
- EAN: 4716123314691
- MPN: NF-A4X10-FLX
